20L Plastic Extrusion Blow Molding Machine Stackable Jerry Can Oil Bottle

Product Categories
Suzhou Tongda Machinery Co., Ltd.
Contact Now

20L Plastic Extrusion Blow Molding Machine Stackable Jerry Can Oil Bottle

Brand Name : TONGDA

Model Number : TDB-25F

Certification : CE, ISO9001

Place of Origin : JIANGSU, CHINA

MOQ : 1SET

Price : $64,999.00 - $79,999.00/Sets

Payment Terms : T/T, L/C, D/P, West Union

Supply Ability : 800sets/year

Delivery Time : 28 working days

Packaging Details : PE film, PE bag, Wooden Cases, Wooden Pallet, etc.

Max Size of Product : 30L

Clamping Force (kN) : 215KN

Capacity of accumulator head : 4L

Screw L/D Ratio : 25

Screw diameter (mm) : 80 mm

Output (kg/h) : 110 kg/h

Contact Now

20L Stackable Jerry Can Oil Bottle Plastic Extrusion Blow Molding Machine


Product Description


If you want to produce 20L, 25L jerry can, and also the flower pot, our TDB-25F model machine will be a good choice.
This is our most classic and most hot sale series machine, with wide application.
We equip servo motors not only for the hydraulic system, also the plasticizing system use the servo motor.
Servo motors for the hydraulic system and plasticizing system not only save energy, also with quick response.
We use accumulator type die head for this series machine. So Servo motor for the plasticizing system will save a lot energy after the filling is finished, and the product is in shaping period.


Technical Parameters


MODEL
Units
TDB-25F
Remarks: If you have other special requirements,we can provide customized services for you.
Max. Product volume
L
30

Output of HDPE
kg/h
110

Clamping force
kn
215

Screw diametre
mm
80

Total power
kw
91.9

Blow pressure

mpa
0.6

Size of machine
m
4.1*2.2*3.5





Product Details

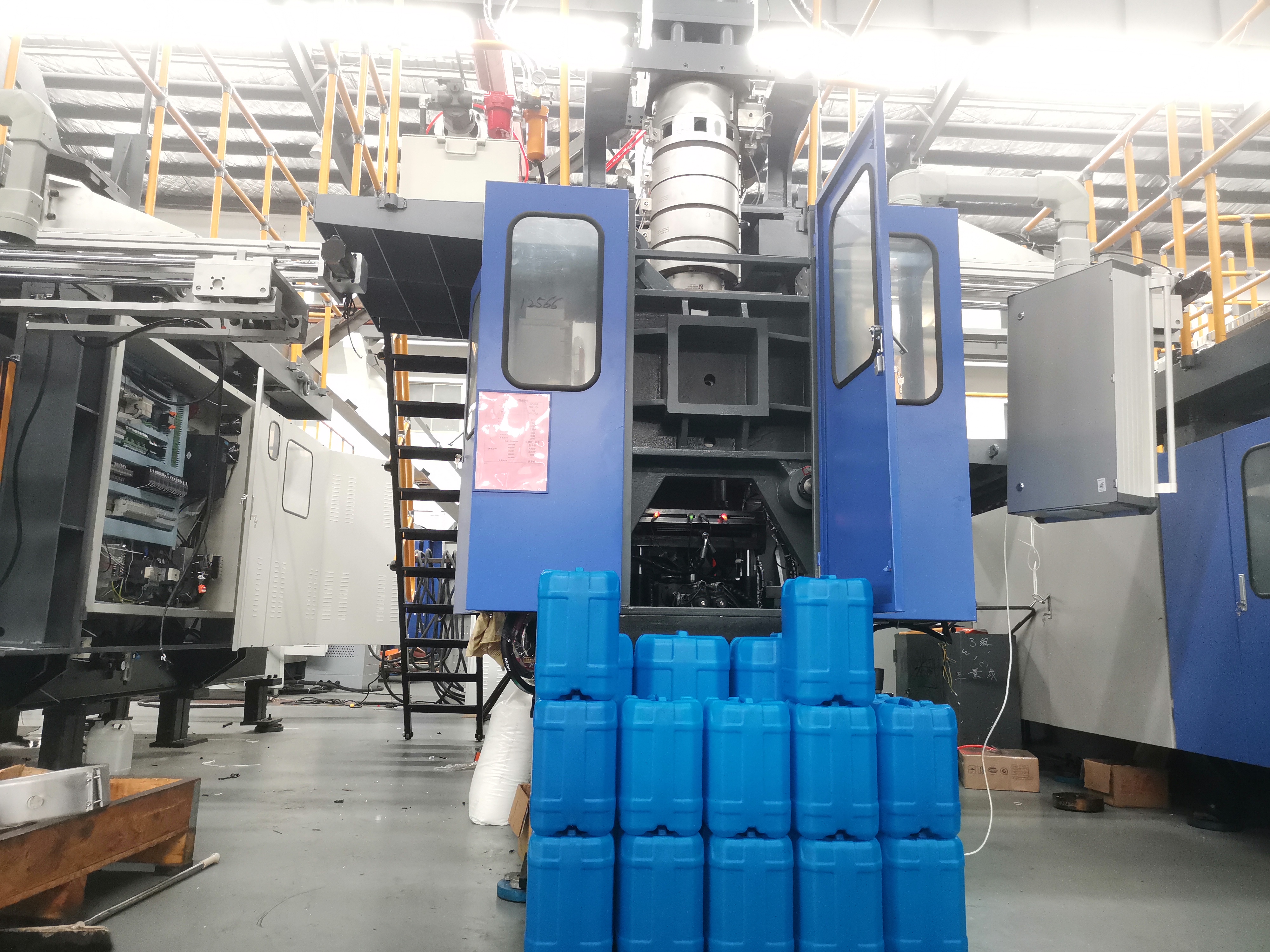

20L Plastic Extrusion Blow Molding Machine Stackable Jerry Can Oil Bottle


20L Plastic Extrusion Blow Molding Machine Stackable Jerry Can Oil Bottle

Bottom Blowing Unit, with high precission of component assembly, can also be equipped with down seal device

Upper parison sealing device, stable and reliable



20L Plastic Extrusion Blow Molding Machine Stackable Jerry Can Oil Bottle

Hydraulic system: proportional pressure control, equipped with famous brand hydraulic components, which are stable and reliable.



Company Information

Suzhou Tongda Machinery Co., Ltd. is located in Zhangjiagang City, Fenghuang town Korea Industrial Park. 2 hours away from Shanghai City by car. We have more than 23 years experience always specialized in R&D and manufacturing of extrusion blow molding machine.
20L Plastic Extrusion Blow Molding Machine Stackable Jerry Can Oil Bottle20L Plastic Extrusion Blow Molding Machine Stackable Jerry Can Oil Bottle


After-sales Service


 20L Plastic Extrusion Blow Molding Machine Stackable Jerry Can Oil Bottle20L Plastic Extrusion Blow Molding Machine Stackable Jerry Can Oil Bottle

1. We have office in Poland, Peru, Chile, Russia, Egypt, Jordan, Thailand, Indonesia, Algeria, Ethiopia, Poland, etc
2. We have benchmark customers in America, Saudi Arabia, Jordan, Qatar, Thailand, Indonesia, etc.
3. Our company has exported over 4000 units machine to more than 120 countries and regions, such as USA, UK, Australia, Greece,Poland.Russia,Belarus,South America, South Africa,Indonesia, Egypt, Syria, Ethiopia.We are not only providing our customers with high quality products, but also provide high quality service Which will be rapidly and timely sent to every customer.





FAQ


Advantages of TONGDA after-sales team
1. Lifetime free service for the machine.
2. Quick response all day long.
3. Set up domestic service team and international service team.
4. Technicians also master the debugging and maintenance of auxiliary equipment.
5. A free 2-day training course will be provided to customers every year.
6. Special processing equipment to produce after-sales accessories to ensure rapid response to user needs.
